PIECES CONSTITUTIVES
SCHEMA
*1 |
ENSEMBLE DE COMBINE D'INSTRUMENTS |
*2 |
ENSEMBLE DE PANNEAU DE FINITION DE COMBINE D'INSTRUMENTS |
*3 |
ENSEMBLE DE GARNISSAGE DE PANNEAU DE FINITION DE COMBINE D'INSTRUMENTS |
*4 |
SOUS-ENSEMBLE DE PANNEAU DE FINITION DE COMBINE D'INSTRUMENTS |
*5 |
SOUS-ENSEMBLE DE GARNISSAGE DE TABLEAU DE BORD N° 2 |
- |
- |

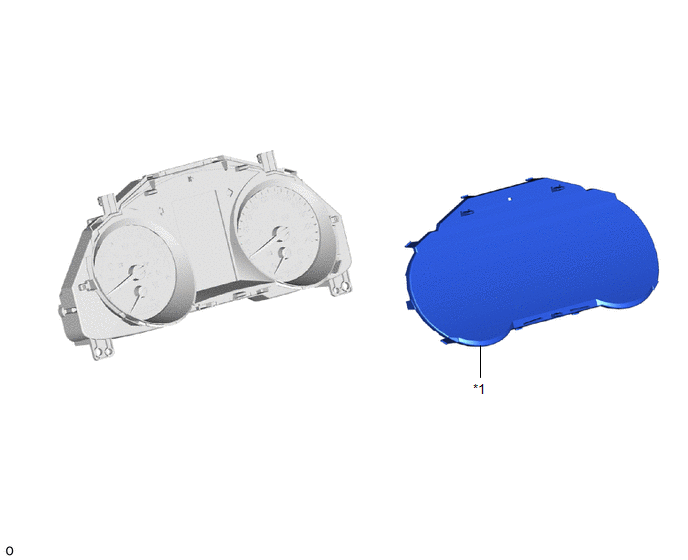

SCHEMA
*1 |
VITRE DE COMBINE D'INSTRUMENTS |
- |
- |
