PIECES CONSTITUTIVES

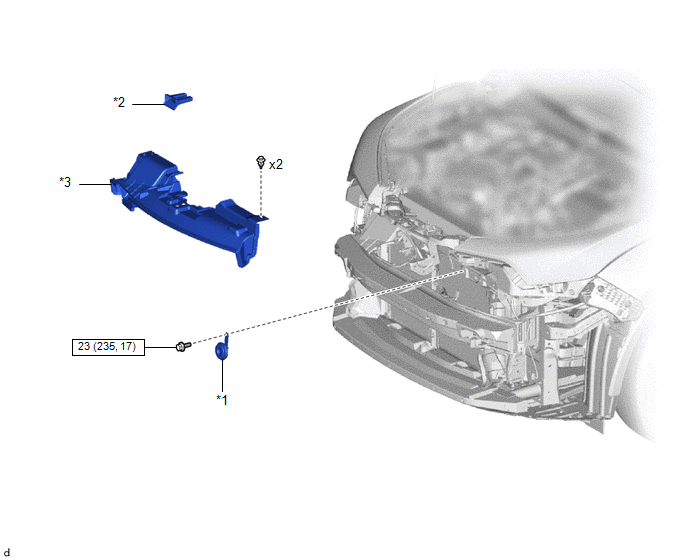

SCHEMA
|
*1 |
ENSEMBLE D'AVERTISSEUR SONORE A TONALITE GRAVE |
*2 |
DISPOSITIF DE RETENUE DE CALANDRE N° 1 |
|
*3 |
JOINT DE SUPPORT DE RADIATEUR N° 1 |
- |
- |
|
N*m (kgf*cm, lbf*pi): couple de serrage prescrit |
- |
- |
VerificationToyota CH-R Revue Technique > Ensemble De Feu Antibrouillard: Repose
REPOSE
MESURE DE PRECAUTION / REMARQUE / CONSEIL
CONSEIL:
Procéder de la même façon pour le côté droit et pour le côté gauche.
La procédure suivante se rapporte au côté gauche.
PROCEDURE
1. REPOSER L'ENSEMBLE DE FEU ANTIBROUILLARD
(a) Engager le gu ...
Toyota CH-R Revue Technique > Servofrein: Repose
REPOSE
PROCEDURE
1. REPOSER LE JOINT D'ETANCHEITE DE SERVOFREIN
(a) Poser un joint d'étanchéité neuf sur l'ensemble de servofrein.
2. REPOSER L'ENSEMBLE DE SERVOFREIN
(a) Reposer provisoirement l'ensemble de servofrein sur la carrosserie du vehicule.
REMARQUE:
Procéder ...
